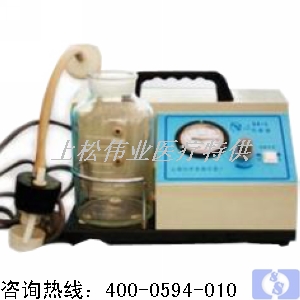

YB.DX-98-7電動吸痰機
特點：
1、電動吸痰機采用無油自潤滑的單柱塞泵作負壓吸引源，由負壓泵（單柱塞泵）、負壓調節器、負壓指示器、收集容器組件、機箱等組成；
2、具有可根據病人的痰液的粘稠度進行無級調壓的特點，能迅速吸出濃痰和粘液，減輕病人痰阻塞的痛苦，起到轉危為安的作用；
3、本機具有溢流閥安全裝置，安全可靠；
4、本機按防電擊類型及程度分類為Ⅰ類設備B型應用部分，運行模式為連續運行，IPX0、非AP型或APG型普通設備；
5、產品符合GB9706.1、YY0505、YY0636.1相關要求。
技術指標：
1、負壓極限值：≥0.08MPa(600mmHg)；
2、負壓調節范圍：0.02～0.08MPa(150～600mmHg)；
3、抽氣速率：泵口（出氣口）≥10L/min，終端≥6L/min；
4、電源：AC220V±22V，50Hz±1Hz；
5、消耗功率：≤30VA；
6、噪聲：≤60dB；
7、收集容器容量：1000mL；
8、工作環境：溫度:+5℃～+35℃，相對濕度：25℃不超過80%，大氣壓力：86KPa～106KPa。
FEATURES:
1、Electric portable absorb phlegmadoption have no oil of oneself lubricate of a pillar fill pump to make vacuum attraction source,It from vacuum pump(a pillar fill pump) and vacuum regulator and vacuum indicator andcollection container assemblyand machine box and etc constitute;
2、It can glue a dense degree according to the patient's phlegm liquid carry on have no class of the vacuum regulate, its ability quick suck out thick phlegm and glue a liquid, it ability ease a patient because the phlegm jam but creation of pain and sufferings, make patient from dangerous arrive safety.
3、It has already defended tooverfill protection device,It is a safety and credibility.
4、It according to type and degree classification of the protection electric shock,it is theⅠequipments B type application part,Circulate mode for continuous circulate, IPX0, is not AP type and APG type common equipments;
5、It meet the related request of theIEC60601-1、IEC60601-1-2、ISO10079-1.
TECHNIQUE:
1、Maxvacuum:≥0.08MPa(600mmHg);
2、Adjustable vacuum range:0.02～0.08MPa(150～600mmHg);
3、Flow rate:Pump≥10L/min,Terminal≥6L/min;
4、Power supply: AC220V±22V, 50Hz±1Hz;
5、Input:≤30VA;
6、Noise:≤60dB;
7、Collection container:1000ml;
8、Work environment:Temperature:+5℃～+35℃,Relative humidity:≤80%(25℃),Atmospheric pressure:86KPa～106KPa.
